Planning Amongst Uncertainty: Designing CCS Infrastructure Resilient to Capture, Transport, and Storage Uncertainty

Project Description

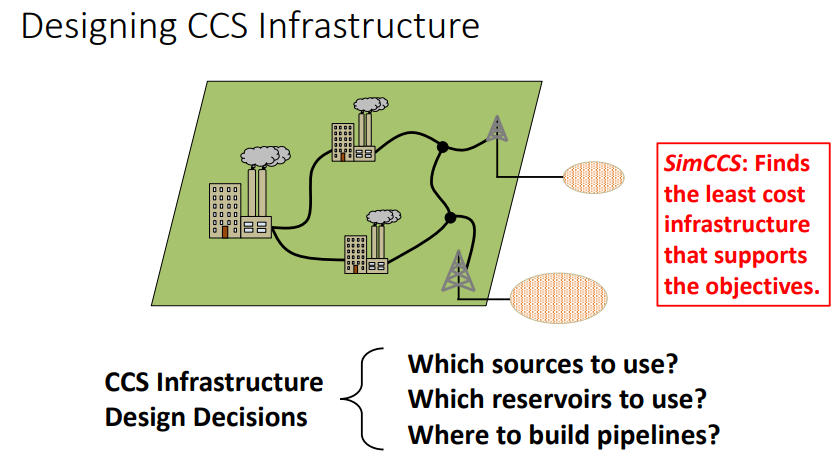

Montana State University (MSU) is collaborating with Carbon Solutions LLC to develop a new approach to design CCS infrastructure resilient to associated uncertainties. The team will consider key CCS infrastructure design questions: Which sources to use? Which reservoirs to use? Where to build pipelines? SimCCS will be used to find the least expensive infrastructure options that support the objectives. The classic parameters to consider are, for capture: location, capture cost, capturable amount; for storage: location, storage cost, storage capacity; for transport: location, construction cost, utilization cost, capacity [1].

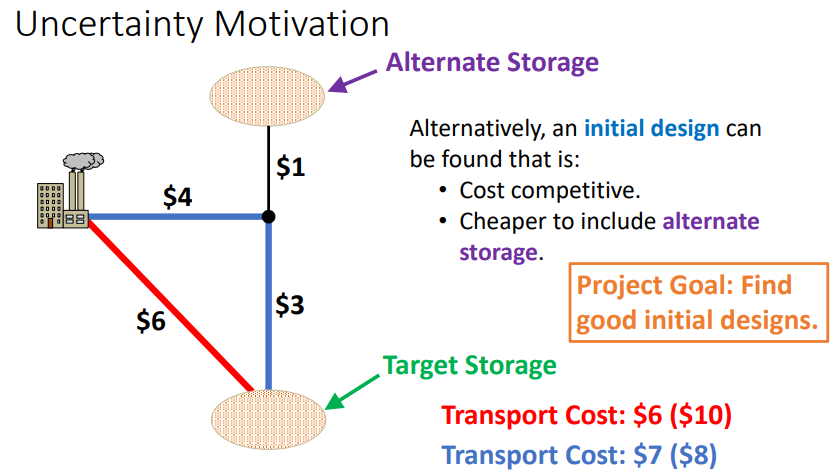

An example of uncertainty in CCS infrastructure design could be that the targeted storage location did not perform as anticipated (e.g., storage capacity or injectivity not as high as estimated), therefore alternate storage must be considered but including this alternative will increase the global cost. Alternatively, an alternative storage site might be found to be cost-competitive.

A previous study [2] developed how to design optimal infrastructure for a set of scenarios, calculated cost for each solution to accommodate all other scenarios and quantified impacts of storage uncertainty on infrastructure performance/cost.

This new focused project aims to improve the previous work by identifying priorities for uncertainty assessment (e.g., storage cost, storage capacity, capture cost). It will explore techniques for endogenously integrate uncertainty into existing models (e.g., distribution and robust optimization) and finally modify the original code (SimCCS) to serve as testbed for various approaches being developed.



Project objectives
  •   Identify priorities for uncertainty assessment
  •   Explore techniques for endogenously integrating uncertainty into model
  •   Develop SimCCS software code to serve as test bed for various approaches being developed


CUSP Team

Project Lead: Sean Yaw (MSU)

Research Partner: Richard Middleton (Carbon Solutions LLC)

Primary Goal

Develop a CCS infrastructure design model that will account for uncertainty throughout the CCS supply chain with a particular focus on storage uncertainty

Impact on Carbon Storage

Output from this project will be used throughout the CUSP region to quantify the cost of accounting and not accounting for uncertainty in the infrastructure design process.

Project Duration

24 months

Anticipated volume/year

Currently undetermined, an analysis will be performed to estimate potential volumes

[1] Yaw S., Middleton R., Planning Amongst Uncertainty: Designing CCS Infrastructure Resilient to Capture, Transport, and Storage Uncertainty, CUSP 2022 Annual Meeting, Las Vegas, NV, United States. Available from: https://www.cuspwest.org/cuspfocusedprojects/

[2] Middleton, R.S. et al., Great SCO2T! Rapid tool for carbon sequestration science, engineering, and economics, Applied Computing and Geosciences, Volume 7, 2020, https://doi.org/10.1016/j.acags.2020.100035.
